Training VLM agents with multi-turn reinforcement learning

Reinforcing Visual State Reasoning for Multi-Turn VLM Agents

Get Started

Paper Documentation Blog Code Experiment Log

Kangrui Wang^*, Pingyue Zhang^*, Zihan Wang^*, Yaning Gao^*, Linjie Li^*

Qineng Wang, Hanyang Chen, Chi Wan, Yiping Lu, Zhengyuan Yang

Lijuan Wang, Ranjay Krishna, Jiajun Wu, Li Fei-Fei, Yejin Choi, Manling Li

^* Equal Contribution

Animated Case Studies

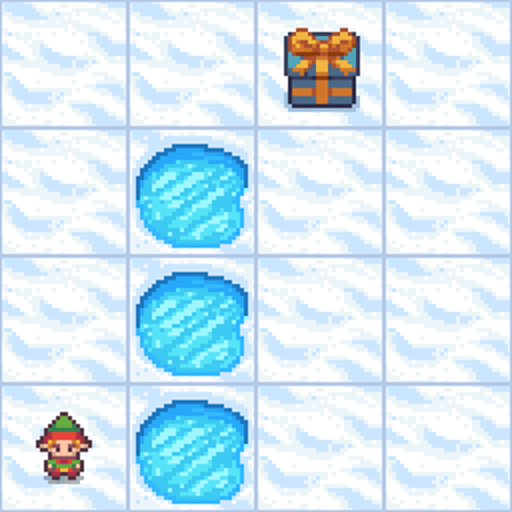

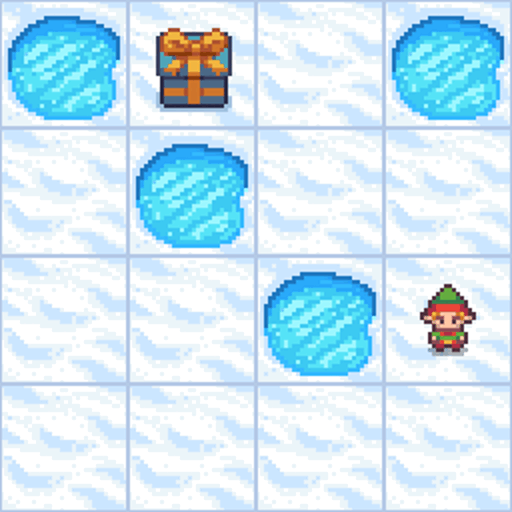

FrozenLake

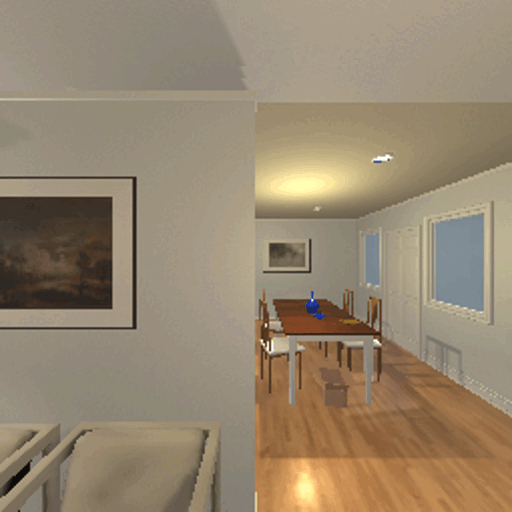

Navigation

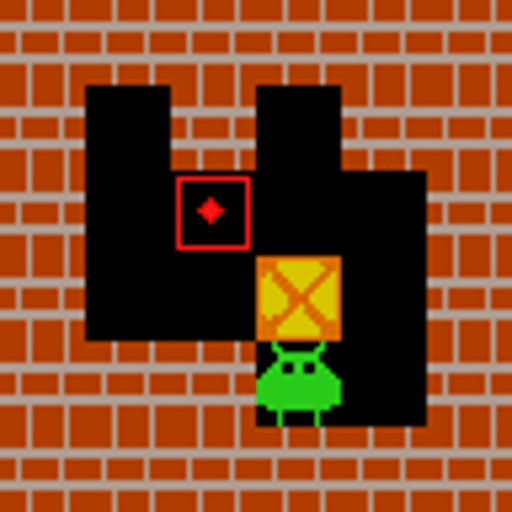

Sokoban

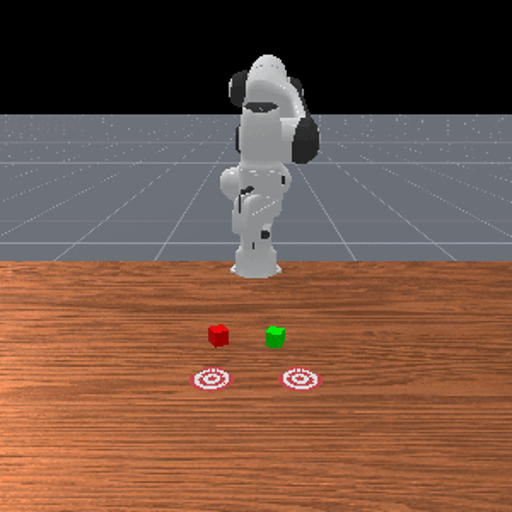

ManiSkill

SVG

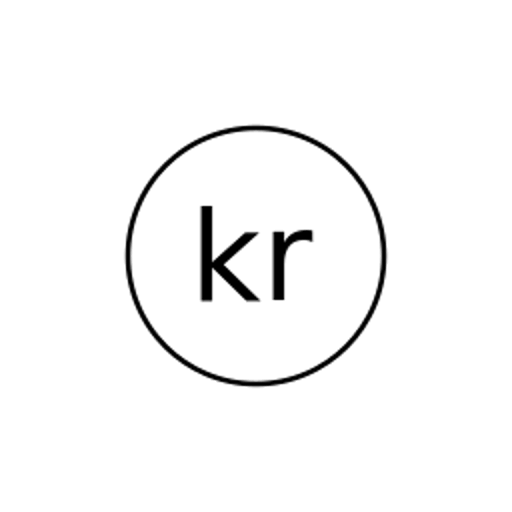

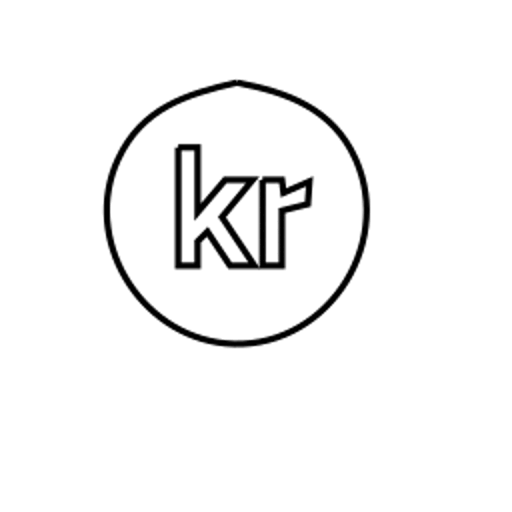

* For SVG: Top is the model's generated SVG, Bottom is the target SVG.

Method

Problem Formulation: VLM Agent Training under POMDP

We frame multi-turn VLM agentic tasks as a Partially Observable Markov Decision Process (POMDP), represented by the tuple \((S, O, \phi, A, p, r, \gamma)\), where \(S\) denotes the set of environment states, and \(O\) is the space of observations perceived by the agent.

Environment State \(s_t \in S\)

full environment state

Observation \(o_t = \phi(s_t)\)

Agent Observation \(o_t \in O\)

visual image + prompt

Each observation \(o_t \in O\) is a partial view of the environment state \(s_t \in S\), given by the observation function \(\phi\). The agent's objective is to learn a policy \(\pi_\theta\) that maximizes the expected cumulative discounted return \[\max_\theta \, E_{\pi_\theta, p} \left[ \sum_{t=1}^{T} \gamma^{t-1} r_t \right]\].

In our setting, the policy \(\pi_\theta\) is parameterized by a VLM that takes in visual images with their prompts as observations, and outputs language token sequences as actions.

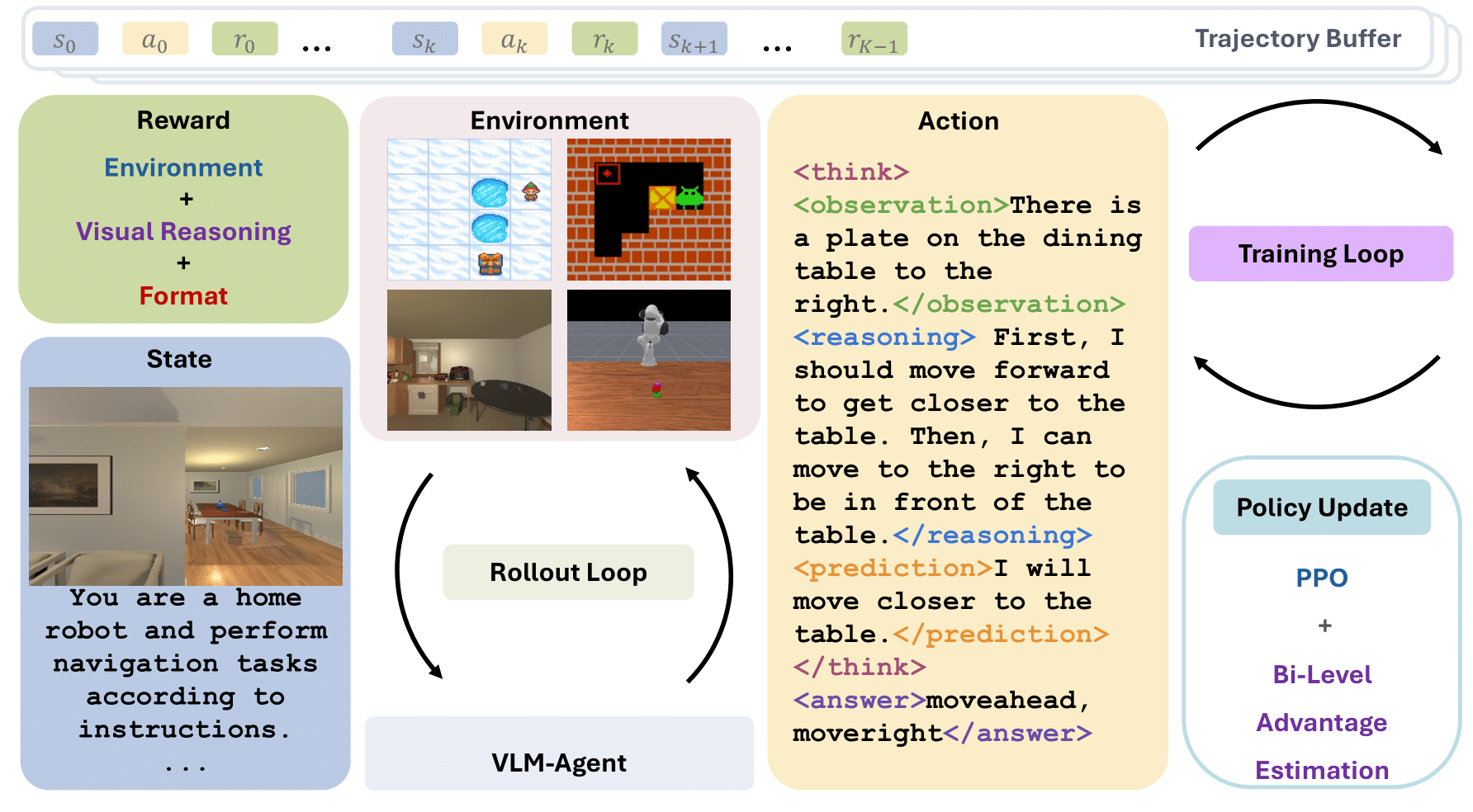

Multi-Turn Reinforcement Learning with Visual State Reasoning

Our training algorithm optimizes multi-turn interactions to better address the demands of agentic tasks, with specifications to VLMs in multi-turn, trajectory-based optimization setting.

Trajectory Rollout with Visual State Reasoning

Each trajectory begins with an initial observation \(o_0\) provided by the environment. The agent generates a structured output \(a_t = \langle z_t, \bar{a}_t \rangle\), where \(z_t\) represents reasoning tokens and \(\bar{a}_t\) represents executable actions.

Visual State Reasoning Strategies:

NoThink

FreeThink

Grounding

WorldModeling

Grounding+WM

NoThink: Direct action generation without explicit reasoning

<answer>...</answer>

FreeThink: Emergent reasoning without specific structure

<think>...</think><answer>...</answer>

Grounding: Explicit current state description

<think><observation>...</observation>...</think><answer>...</answer>

Learning: \(o_t \rightarrow s_t\)

WorldModeling: Explicit future state prediction

<think>...<prediction>...</prediction></think><answer>...</answer>

Learning: \(o_t, a_t \rightarrow s_{t+1}\)

Grounding+WorldModeling: Combined current and future state reasoning

 <think><observation>...</observation><reasoning>...</reasoning><prediction>...</prediction></think><answer>...</answer>

Learning: \(o_t \rightarrow s_t, \ \ s_t, a_t \rightarrow s_{t+1}\)

Advantage Estimation with Masked GAE

We use a modified form of Generalized Advantage Estimation (GAE) that applies masking to exclude tokens generated by the environment (i.e., non-action tokens) from advantage estimation and loss computation. This ensures that only relevant tokens contribute to the learning signal.

+ Show Code

def compute_gae_advantage_return_with_loss_mask(token_level_rewards: torch.Tensor, values: torch.Tensor,
                                 loss_mask: torch.Tensor, gamma: float, lam: float):
    """Modified GAE calculation that handle multi-turn with loss mask
    Here we should also ensure that the trajectory score is given at the last valid token instead of last token
    Seems it's true in reward manager
    Args:
        token_level_rewards: `(torch.Tensor)`
            shape: (bs, response_length)
        values: `(torch.Tensor)`
            shape: (bs, response_length)
        loss_mask: `(torch.Tensor)`
            shape: (bs, response_length). 1 for llm_raw_response, 0 for environment info and paddings
        gamma: `(float)`
            discounted factor used in RL
        lam: `(float)`
            lambda value when computing Generalized Advantage Estimation

    Returns:
        advantages: `(torch.Tensor)`
            shape: (bs, response_length)
        Returns: `(torch.Tensor)`
            shape: (bs, response_length)
    """
    with torch.no_grad():
        batch_size, gen_len = token_level_rewards.shape
        advantages = torch.zeros_like(token_level_rewards)
        returns = torch.zeros_like(token_level_rewards)

        for b in range(batch_size):
            lastgaelam = 0.0

            # Find the valid token positions (where loss_mask is 1)
            valid_positions = loss_mask[b].nonzero(as_tuple=True)[0]

            if len(valid_positions) == 0:
                continue

            for i in range(len(valid_positions) - 1, -1, -1):
                curr_pos = valid_positions[i]

                # Get the next value
                if i < len(valid_positions) - 1:
                    # Next valid position
                    next_pos = valid_positions[i + 1]
                    nextvalue = values[b, next_pos]

                else:
                    # Last valid position
                    nextvalue = 0.0

                # Calculate delta using the next valid token
                delta = token_level_rewards[b, curr_pos] + gamma * nextvalue - values[b, curr_pos]

                # Update advantage estimate
                lastgaelam = delta + gamma * lam * lastgaelam
                advantages[b, curr_pos] = lastgaelam

            # Calculate returns for valid positions
            for i, pos in enumerate(valid_positions):
                returns[b, pos] = advantages[b, pos] + values[b, pos]


        advantages = verl_F.masked_whiten(advantages, loss_mask)

    return advantages, returns

Policy Update with PPO

We update the actor and critic using the following formulas:

\[J^{PPO}(\theta) = \frac{1}{\sum_i M_i^{loss}} \sum_i M_i^{loss} \cdot \min \left( r_i(\theta) A_i^{GAE}, clip(r_i(\theta), 1 - \varepsilon, 1 + \varepsilon) A_i^{GAE} \right)\]

\[J^{\text{Critic}}(\phi) = \frac{1}{\sum_i M_i^{\text{loss}}} \sum_i M_i^{\text{loss}} \cdot \left( V_\phi(s_i) - \hat{R}_i \right)^2\]

where \(M_i^{loss}\) masks non-action tokens. The trajectory collection, advantage estimation, and policy update iterate until convergence.

Boost #1: Visual Reasoning Reward

We use LLM-as-Judge to reward the agent when its predicted or observed visual state matches the ground truth.

Boost #2: Bi-Level GAE

To address the limitation of only providing trajectory-level feedback, we propose Bi-Level GAE, which delivers fine-grained turn-level reward signals. This approach assigns rewards at the end of each action and introduces two discount factors: one for tokens within a turn, and one for transitions across turns.

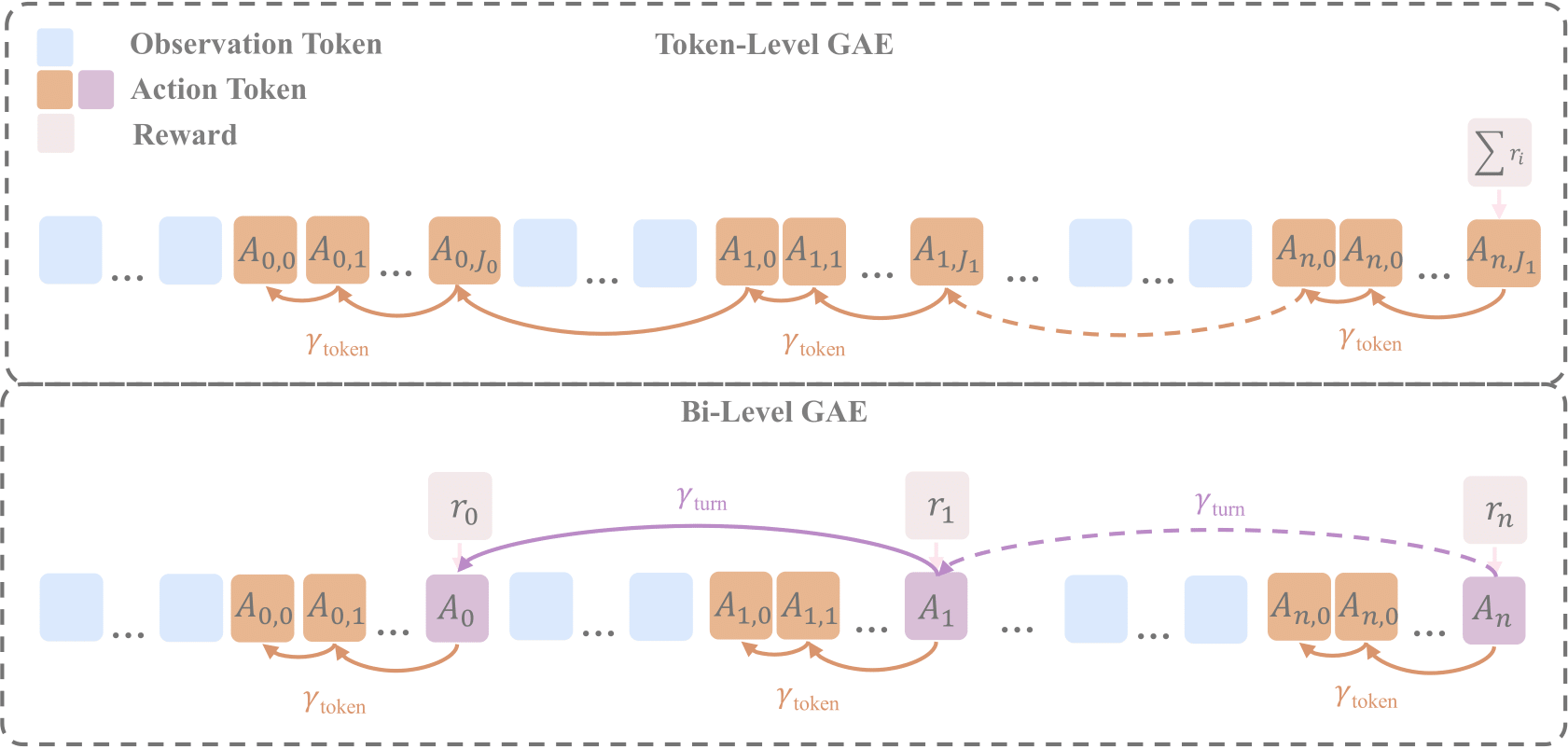

Bi-Level GAE framework illustration.

+ Show Code

def compute_bi_level_gae_advantage_return(
        token_level_rewards: torch.Tensor,
        reward_mask: torch.Tensor,
        values: torch.Tensor,
        loss_mask: torch.Tensor,
        gamma: float,
        lam: float,
        high_level_gamma: float
    ):
    """Modified GAE calculation that compute two level of advantage and return:
    high level: per-turn wise
    low level: token wise
    there're two level of MDP, where high level is the agentic MDP and low level is the token MDP
    Args:
        token_level_rewards: `(torch.Tensor)` (multi-turn reward, per turn reward is given at eos token for each response token sequence)
            shape: (bs, response_length)
        reward_mask: `(torch.Tensor)`
            shape: (bs, response_length). 1 for reward position (end of each llm response)
        values: `(torch.Tensor)`
            shape: (bs, response_length)
        loss_mask: `(torch.Tensor)`
            shape: (bs, response_length). 1 for llm_raw_response, 0 for environment info and paddings
        gamma: `(float)`
            discounted factor used in RL for token rewards
        high_level_gamma: `(float)`
            discounted factor used in RL for per-turn reward
        lam: `(float)`
            lambda value when computing Generalized Advantage Estimation

    Returns:
        advantages: `(torch.Tensor)`
            shape: (bs, response_length)
        Returns: `(torch.Tensor)`
            shape: (bs, response_length)
    """
    with torch.no_grad():
        batch_size, gen_len = token_level_rewards.shape
        advantages = torch.zeros_like(token_level_rewards)
        returns = torch.zeros_like(token_level_rewards)
        updated_reward = token_level_rewards.clone()

        for b in range(batch_size):
            # First, calculate high level advantage and return for eos token of each turn using high level gamma
            eos_positions=reward_mask[b].nonzero(as_tuple=True)[0]
            lastgaelam = 0.0
            for i in range(len(eos_positions) - 1, -1, -1):
                curr_pos = eos_positions[i]

                # Get the next value
                if i < len(eos_positions) - 1:
                    # Next valid position
                    next_pos = eos_positions[i + 1]
                    nextvalue = values[b, next_pos]

                else:
                    # Last valid position
                    nextvalue = 0.0

                # Calculate delta using the next valid token
                delta = updated_reward[b, curr_pos] + high_level_gamma * nextvalue - values[b, curr_pos]

                # Update advantage estimate
                lastgaelam = delta + high_level_gamma * lam * lastgaelam
                advantages[b, curr_pos] = lastgaelam

            for i, pos in enumerate(eos_positions):
                returns[b, pos] = advantages[b, pos] + values[b, pos]
                updated_reward[b, pos] = advantages[b, pos] + values[b, pos]

            # Then, calculate low level advantage and return for each token using gamma, assume the reward for the sequence now is the return at eos token
            lastgaelam = 0.0
            valid_positions = loss_mask[b].nonzero(as_tuple=True)[0]
            for i in range(len(valid_positions) - 1, -1, -1):
                curr_pos = valid_positions[i]
                if curr_pos not in eos_positions:
                    # Next valid position
                    next_pos = valid_positions[i + 1]
                    nextvalue = values[b, next_pos]
                else:
                    # Last valid position
                    nextvalue = 0.0
                    lastgaelam = 0.0
                delta = updated_reward[b, curr_pos] + gamma * nextvalue - values[b, curr_pos]
                lastgaelam = delta + gamma * lam * lastgaelam
                advantages[b, curr_pos] = lastgaelam
                returns[b, curr_pos] = lastgaelam + values[b, curr_pos]

        advantages = verl_F.masked_whiten(advantages, loss_mask)

    return advantages, returns

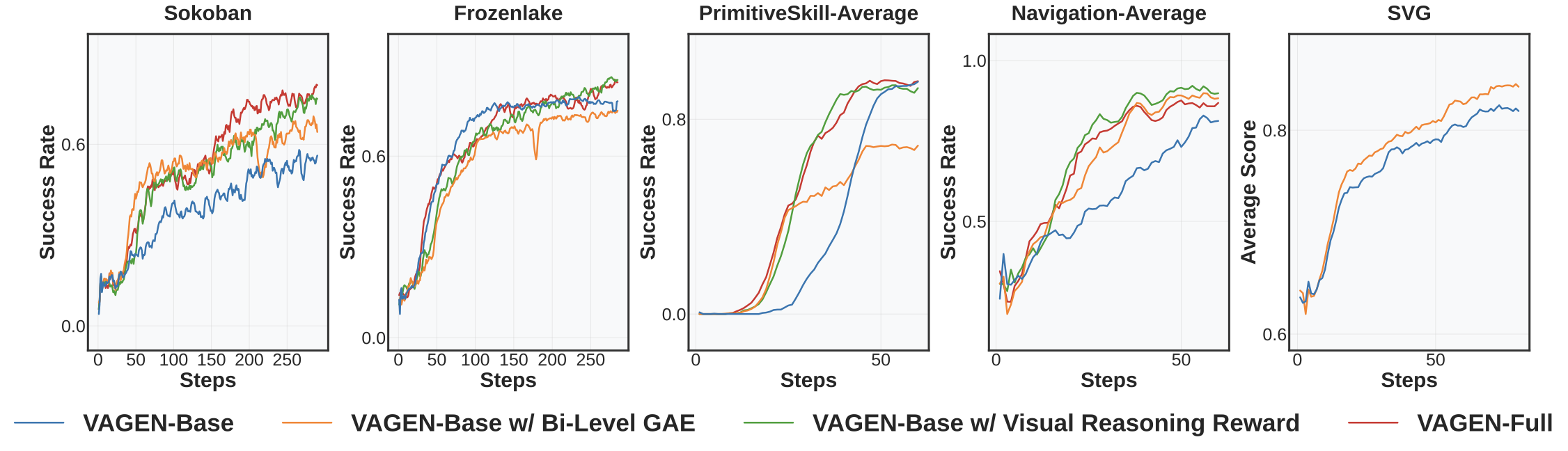

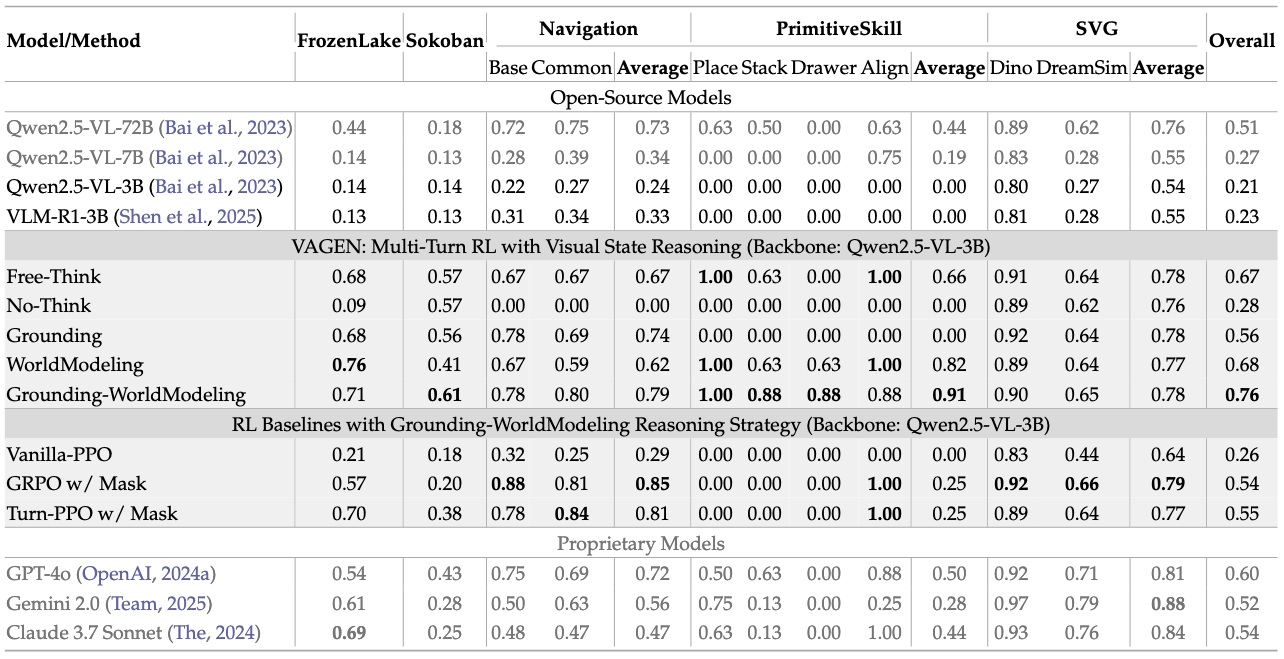

Results

Explicitly visual states reasoning is crucial for VLM agents.

Bi-Level GAE alone brings notable but unstable improvements, being sensitive to reward sparsity and less stable in sparse environments.
The Visual Reasoning Reward alone consistently boosts performance by providing essential visual learning signals, but is limited by coarse credit assignment.
VAGEN-Full is the most robust and achieves strong, stable results across all tasks.

Cases

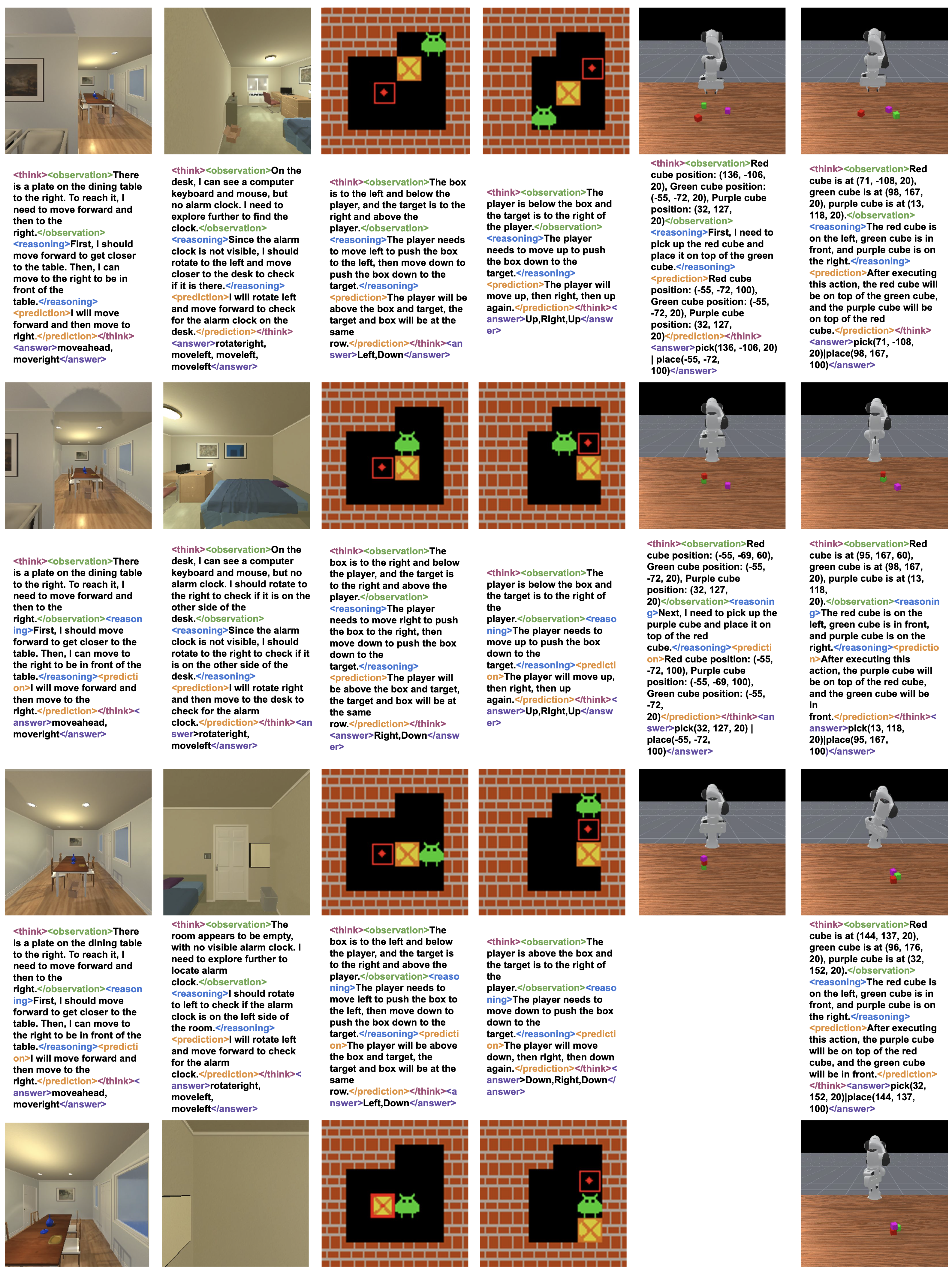

Case : Enhanced Visual State Reasoning with VAGEN-Full

VAGEN-Full vs. VAGEN-Base in Navigation, Sokoban and Frozenlake (left to right). For the same environment, VAGEN-Full is the left column, VAGEN-Base is the right column.

Summary of Findings

Finding 1: Explicit Visual State Reasoning is Crucial for Multi-Turn VLM Agents

Vanilla VLMs struggle with multi-turn agentic tasks requiring visual state understanding. Integrating explicit visual state reasoning steps—specifically Grounding and World Modeling—into the VLM's thinking process during RL training significantly enhances task performance. The combined Grounding-WorldModeling strategy, in particular, demonstrates strong and stable performance, enabling a trained open-source VLM to outperform its un-trained counterpart and even surpass benchmarked proprietary models.

Finding 2: Optimal Visual State Representation is Task-Dependent

The choice of representation for visual states during explicit reasoning significantly impacts performance:

Natural Language: Performs consistently well, especially when structured information must be inferred from raw visual input.
Structured Formats: Excel in manipulation-heavy tasks (e.g., PrimitiveSkill) where object-centric state abstractions are readily available.
Symbolic Representations: Proved less effective due to the model's limited prior interpretability from visual input.

Finding 3: Visual Reasoning RL with Targeted Rewards and Bi-Level GAE Enhances Reasoning Quality and Task Success

To specifically improve visual state reasoning, Visual Reasoning RL incorporates:

Turn-level Visual Reasoning Reward: An LLM-as-a-Judge assesses the accuracy of the VLM's explicit state descriptions and predictions, effectively supervising reasoning.
Bi-Level General Advantage Estimation (GAE): Estimates advantages at both turn and token levels, providing finer-grained reward signals and improving credit assignment.

This approach consistently outperforms Base RL, leading to improved reasoning quality, higher task success rates, and better generalization.

Finding 4: Emergent Reasoning Patterns and Challenges

Beyond quantitative measurements, we qualitatively analyzed how agents learn to reason:

Reasoning Stability Varies by Task: While reasoning in tasks like Navigation and PrimitiveSkill (and often Sokoban) appears relatively normal and beneficial with explicit rewards, tasks like FrozenLake show more erratic reasoning patterns, potentially correlating with its lower performance and the difficulty of its visual state reasoning.
Potential for Reward Hacking: Instances of "reward hacking" were observed, particularly with certain reward configurations. Agents might learn to generate reasoning-like text that satisfies the reward mechanism without genuinely reflecting deep understanding or accurate future prediction.
Bi-Level GAE as a Double-Edged Sword: While Bi-Level GAE can improve credit assignment, its interaction with visual reasoning rewards might sometimes allow for more "divergent" or less grounded thinking if the reasoning reward itself can be easily hacked.
Convergence to Standardized Phrasing: Agents across different environments tend to converge towards using a more uniform, templated sentence structure for their reasoning and actions over prolonged training, primarily varying only the directional or specific action tokens.
Rule-Based Filtering as a Potential Mitigation: For simpler forms of reward hacking where reasoning outputs fail basic semantic checks, simple rule-based filtering before reward assignment could be a pragmatic interim solution.

These observations underscore that while explicit reasoning and rewards are beneficial, the design of these rewards must be robust against exploitation, and continuous monitoring of reasoning quality is essential.

Citation

If you find VAGEN useful in your research, we would appreciate it if you consider citing our work:

@misc{wang2025vagen,
  title={Reinforcing Visual State Reasoning for Multi-Turn VLM Agents},
  author={Kangrui Wang* and Pingyue Zhang* and Zihan Wang* and Yaning Gao* and Linjie Li* and Qineng Wang and Hanyang Chen and Chi Wan and Yiping Lu and Zhengyuan Yang and Lijuan Wang and Ranjay Krishna and Jiajun Wu and Li Fei-Fei and Yejin Choi and Manling Li},
  year={2025},
  url={https://github.com/RAGEN-AI/VAGEN}
}
